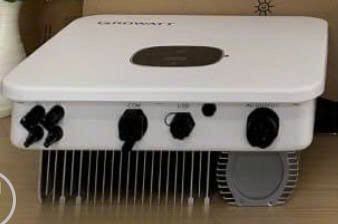

Growatt 5kW Inverter (MIN5000TL-X)
12,500,000 ₫Approximately: $ 500.00
- MODEL 5000TL-X
- AC Output Power: 5000 W
- Efficiency: 98.7%
- Cooling: Natural, fanless
- Type 2 DC surge protection
- Maximum input power from solar panels: 7000 Wp
- Supports multiple connections: RF, WiFi, RJ45
- DC input voltage: 50V-550V
- Dimensions: 415x378x413 mm
- Self-consumption: <0.5W
- Protection level: IP65
- Suitable for single-phase power supply
- Weight: 10.8 kg
- Operating temperature range: –25°C to +60°C
-
Operating Principle of the Growatt 5kW Inverter (5000TL-X)
- When solar energy is absorbed by the solar panels, it is converted into direct current (DC). The Growatt 5kW grid-tied inverter then converts this DC into alternating current (AC). It then automatically synchronizes the phase between the solar power and the grid, allowing the solar power to automatically integrate with the grid for consumption.
- Advantages of the Growatt 5kW Inverter (5000TL-X)
- The Growatt 5kW grid-tied inverter uses advanced 2 MPPT technology to detect the optimal power point based on sunlight intensity.
- The aluminum alloy casing is both durable and lightweight, making transportation and installation convenient.
- The cooling system uses natural heat dissipation, without the use of fans.
- Maximum Power Point Tracking (MPPT) circuit with a wide adaptive range, flexible for various sunny environments.
- High load capacity and data retention with high accuracy.
- Easy installation and maintenance via internet connection.
- Intelligent automatic control and monitoring system, shutting off in darkness or when grid power is lost, ensuring maximum efficiency and safety.
- IP65 protection rating, resistant to rain and dust, suitable for outdoor environments.
- Supports multiple high-speed RF, WiFi, and RJ45 connections, allowing users to remotely monitor the system anytime, anywhere via the internet.
- Full-screen LCD display for easy monitoring.
- Supports grid-tied control.
